Mastering P-Type Semiconductor Doping: Why 6N Crystalline Boron Pellets Are Driving Next-Gen Electronics

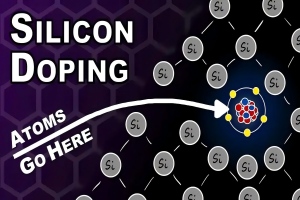

In the rapid evolution of power electronics, 5G infrastructure, and high-efficiency photovoltaic systems, the demand for ultra-pure semiconductor materials has never been more critical. At the heart of p-type semiconductor manufacturing lies a fundamental element: high-purity boron.
As a leading boron dopant supplier China trusts, BoronHub specializes in engineering advanced elemental boron solutions. Among our flagship offerings, 6N Crystalline Boron Pellets for Semiconductor Dopant stand out as the industry benchmark for precision doping in crystal growth and device fabrication.
1. Defining True 6N Purity: Precision Beyond the Standard
When global wafer fabs and device manufacturers look to buy semiconductor grade boron, purity and consistency are non-negotiable. Our high purity crystalline boron is meticulously processed to achieve a minimum purity level of 99.9999% boron dopant pellets, widely recognized as 6n purity boron or 6n crystalline boron.
Unlike routine commercial grades, BoronHub’s 6N boron pellets undergo rigorous Inductively Coupled Plasma Mass Spectrometry (ICP-MS) testing. We strictly control 11 critical metallic impurities (such as Fe, Cu, Al, and Na) to sub-ppm levels (total aggregate impurities < 1.0 ppm), ensuring that our high purity crystalline boron dopant prevents lattice defects and maximizes charge carrier mobility in sensitive electronic devices.
2. Core Applications Across Advanced Semiconductor Technologies
Our versatile boron dopant pellets and 6N boron granules semiconductor dopant are tailored for a wide array of advanced crystal growth and doping techniques:

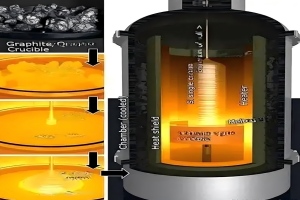

* Czochralski (CZ) Silicon Growth: Used extensively as a boron dopant Czochralski silicon source, our uniform crystalline boron pellets ensure stable segregation coefficients and uniform radial resistivity distribution during ingot pulling.
* Float Zone (FZ) Silicon Processing: For high-power devices requiring high-purity starting material, our boron dopant float zone silicon solutions offer exceptional cleanliness and precise concentration control.
* Wide Bandgap Semiconductors (SiC & GaN): As the industry shifts toward high-frequency and high-temperature power electronics, our materials serve as an elite boron dopant silicon carbide p-type and boron dopant GaN p-type additive, establishing reliable ohmic contacts and stable p-type dopant silicon crystal growth.

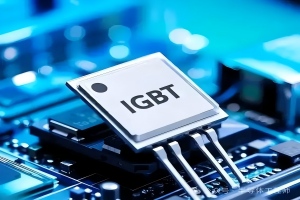

* IGBT and Power Diodes: Serving as an optimal boron source for IGBT doping, our high purity boron pellets empower manufacturers to engineer sharp, reliable p-n junctions essential for electric vehicles and industrial motor drives.
3. Physical Excellence and Packaging Integrity
BoronHub’s semiconductor grade boron is supplied in convenient, uniform granule shapes designed to minimize dusting and surface oxidation during handling:
* Form & Structure: β-rhombohedral crystalline structure possessing exceptional thermal stability and a high melting point of 2076 °C.
* Packaging: To preserve purity during international transit, our boron granules semiconductor products are hermetically sealed in inert gas-filled polytetrafluoroethylene (PTFE) bottles (available in 50g/100g or customized bulk configurations).
* Partner with BoronHub for Your Material Needs
Whether you are scaling up industrial production or conducting cutting-edge R&D, evaluating the crystalline boron pellets price and securing a reliable 6N boron dopant supplier is vital to your supply chain resilience.
At BoronHub, we offer transparent pricing models (competitive quotes available for 6n boron dopant per kg) alongside comprehensive Certificates of Analysis (COA) for every batch.
Ready to optimize your crystal pulling and device fabrication lines? Contact the BoronHub technical team today to request sample testing data, TDS documents, or a customized quotation for your specific application.
